Dune HD Homatics Box R 4K Plus


2-in-1 Netflix-certified Streaming Media Player + Dune HD Media Center. Netflix in 4K Dolby Vision & Atmos, AV1, USB3, 4GB, Wi-Fi 6, 1Gbit, ISO 4K DV P7 FEL. Extremely Feature-Rich Android TV Box

In stock

SKU: D-Homatics Category: Tag:


Dune HD Homatics Box R 4K Plus

2-in-1 Netflix-certified Streaming Media Player + Dune HD Media Center.
Netflix in 4K Dolby Vision & Atmos, AV1, USB3, 4GB, Wi-Fi 6, 1Gbit, ISO 4K DV P7 FEL. Extremely Feature-Rich Android TV Box


  • Unique 2-in-1 combination of Netflix-certified Android TV streaming media player and advanced Dune HD media center
  • Official Netflix and Google Android TV 11 certifications
  • Dune HD media center
  • Newest technologies (AV1, Dolby Vision & Atmos, HDR10+ …)
  • Rich connectivity (E4GB, 1Gbit, Wi-Fi 6, …)

The official Netflix, Google and other certifications ensure excellent support for Netflix and other streaming services (such as Amazon Prime Video, Disney+, Apple TV+, HBO Max and many others) with the best possible audio and video quality (up to 4K Dolby Vision and Atmos). The modern Android TV 11 OS version with the official Google Android TV certification ensures excellent compatibility with all Android TV applications and features and also gives a very powerful “Chromecast built-in” technology.

This media player includes a lot of the newest technologies: AV1 video codec, VP9 profile 2 video codec, Dolby Vision, Dolby Atmos, and Dolby MAT.

This media player has a lot of powerful hardware for best performance: 4 GB operating memory, 32 GB flash memory, 1 Gbit Ethernet, Wi-Fi 6 (802.11ax), USB 3.0, Bluetooth 5.0 (and ships with a Bluetooth remote with microphone.

How to set up Dune HD Media Center: here

Media processor: Amlogic S905X4-K with Dolby Vision, Dolby Atmos, DTS licenses

CPU: ARM Cortex A55 4-core

Operating memory: 4 GB

Flash memory: 32 GB

Ethernet: 10/100/1000 Mbit/s

Wi-Fi: 802.11b/g/n/ac/ax (Wi-Fi 6), Dual Band 2.4+5 GHz, 2T2R

Bluetooth: 5.0

USB ports: 1x USB 3.0 + 1x USB 2.0

HDMI output: HDMI 2.1 up to 4Kp60 HDR / HDR10+ / Dolby Vision, HDCP 2.2

Analog A/V output: Absent in new batches (May/2023 and later), was present only in old batches: 3.5mm minijack (composite video + stereo audio)

S/PDIF output: Optical S/PDIF

Reserved port (rear): For potential extensions (DVB-T/T2/C tuner)

Reserved port (bottom): Present only in new batches (May/2023 and later), was absent in old batches: For potential extensions (Smart Speaker)

Power input: 12V DC IN (1.5A)

Power supply: External, DC 12V (1.5A), AC 100-240V

Case: Plastic

Dimensions (W x H x D): 114mm x 28mm x 114mm

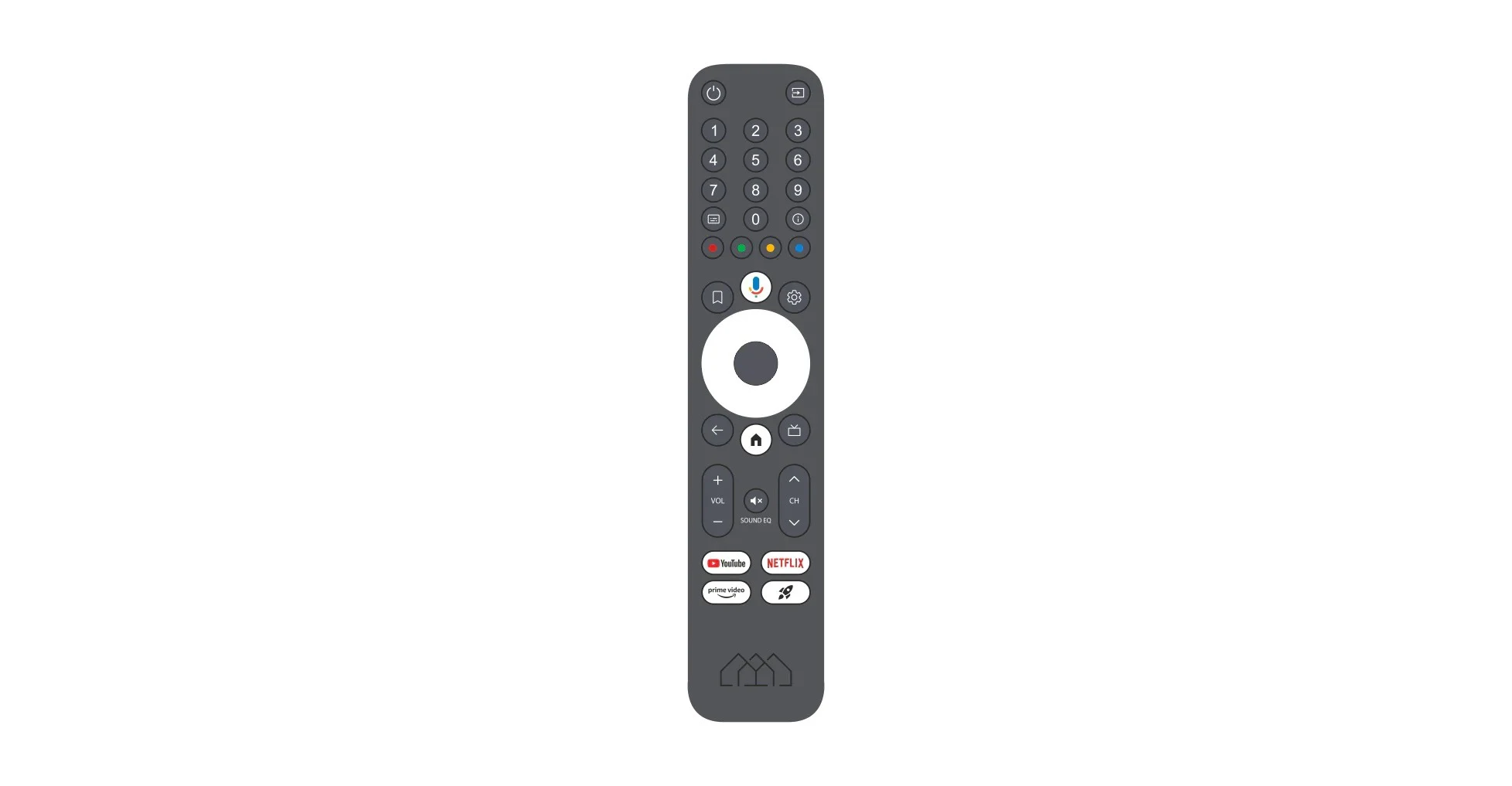

Remote: Bluetooth remote with microphone (voice search) and programmable app button. The remote also has an IR emitter and can control TVs and A/V receivers via the IR channel, and also control the media player via the IR channel (when there is no Bluetooth connection to the media player) (using Google IR codes). New batches (May/2023 and later) are shipped with a bigger remote (added buttons: 0..9, colour buttons, INFO, SUBTITLES), old batches were shipped with a small remote

IR control: Built-in IR receiver, supports Google IR codes only (Note: because of certified Android TV solution, Dune HD IR codes are not supported)

OS: Android TV 11.0 + Linux-based Dune HD OS (available via app *)

Netflix certification: Yes

Google Android TV certification: Yes

Widevine DRM: Widevine L1

Streaming services: Netflix, Amazon Prime Video, Disney+, Apple TV+, HBO Max, YouTube and many others (includes all services available via Android TV apps in Google Play Store) (depends on region and policies of particular services)

Filesystems: FAT16/FAT32 (read-write), exFAT (read-write), NTFS (read-only)

Video decoding: AV1, VP9 profile 2, H.265 (HEVC), H.264 (AVC), VC1, MPEG4, MPEG2, MPEG1

Video upscaling: Upscaling of SD and other resolutions up to 4K

3D video: Side-by-Side, Top-and-Bottom

Audio in streaming services: Up to Dolby Atmos (depends on a particular streaming service)

Audio in Dune HD media center: Most popular formats can be played, up to Dolby TrueHD with Atmos and DTS X, multichannel FLAC and multichannel SACD (DSD); see Dune HD media center specifications for more details

Dune HD Media Center specifications

Video file formats: MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, QT, ASF, WMV, ISO, movie folder structures
Dolby Vision playback: Profiles 5, 7 (MEL and FEL), 8; various containers (ISO, movie folder structure, MKV, MP4, M2TS); DTDL (double-track double-layer), STDL (single-track double-layer), STSL (single-track single-layer). Double-track/double-layer video (profile 7 MEL, profile 7 FEL) is played with the use of data from both tracks/layers: video data from the first track/layer (with 10-bit colour depth – the maximum colour depth supported by OLED panels in OLED TVs), extended Dolby Vision information (RPU metadata) from the second track/layer
Automatic framerate and resolution switching: yes
Audio decoding: MPEG-1/2 layer I/II/III, AAC, LPCM, FLAC, multichannel FLAC, Vorbis, WavPack, APE (Monkey’s Audio), ALAC (Apple lossless), SACD DSD (stereo and multichannel), multichannel PCM (up to 7.1), Dolby and DTS formats
Dolby and DTS formats: Audio tracks in the following Dolby and DTS formats can be played: Dolby Digital, Dolby Digital Plus, Dolby Digital Plus with Atmos, Dolby TrueHD, Dolby TrueHD with Atmos, DTS, DTS HD HRA, DTS HD MA, DTS X. All formats can be decoded by the media player and output to HDMI as multichannel uncompressed PCM (up to 7.1 channels, 48KHz). The following formats can be output as a bitstream: Dolby Digital, Dolby Digital Plus, Dolby Digital Plus with Atmos, Dolby TrueHD, Dolby TrueHD with Atmos, and DTS. Dolby formats can also be output as multichannel audio using Dolby MAT technology (multichannel PCM with Atmos) when the receiver supports it
Audio file formats: MP3, MPA, M4A, AAC, WAV, FLAC, Ogg/Vorbis, WavPack, APE (Monkey’s Audio), ALAC (Apple lossless), SACD ISO (stereo and multichannel), SACD DSF (stereo and multichannel), SACD DFF (stereo and multichannel), AC3, DTS, DTS-WAV
Subtitle formats: SRT (external), SUB (MicroDVD) (external), text (MKV), SSA/ASS (MKV, external), VobSub (MP4, MKV, external SUB/IDX), PGS (ISO, TS, MKV)
Online subtitles: Automatically download subtitles from the Internet
Picture file formats: JPEG, PNG, BMP
Photo viewer functions: Slideshow, transition effects, picture rotation, zoom, view playlist, repeat, shuffle
Playlist file formats: M3U, PLS, CUE
Playlist functions: Build a playlist from selected folders and files, build a playlist from selected playlist files, view playlist file, view the current playlist, quickly jump to the next/previous or selected playlist item, repeat, shuffle, a playlist of photo files, a playlist of audio files, a playlist of video files, a mixed playlist of audio and video files
NFS client: Browse NFS servers/shares, manually connect to NFS share, directly access and play files
SMB client: Browse SMB servers/shares, manually connect to SMB share, directly access and play files
SMB server: Share local storage devices and internal memory
iOS and Android mobile apps: Control Dune HD media center via the powerful Dune Control mobile application
IP control: Integrate Dune HD media center into Home Automation systems via the IP Control Interface
Control4 and Crestron: Integrate Dune HD media center into Smart Home installations based on Control4 and Crestron technologies
Android TV specifics: Because of a certified Android TV solution, some functions work with some specifics and limitations. In particular, due to security requirements, all network functions (such as SMB server, IP control, and NFS client) use so-called “non-privileged” ports. This imposes some restrictions on the use of these functions. For more details please see https://dune-hd.com/app

Package Contents

  • Media Player x1
  • Bluetooth Remote x1
  • Batteries AAA x2
  • Power supply 12V 1.5A x1
  • HDMI cable x1
  • Quick installation guide x1


Full description at https://dune-hd.ca/dune-hd-homatics-box-r-4k-plus/

Additional information

Weight 1 kg
Dimensions 20 × 15 × 12 cm
